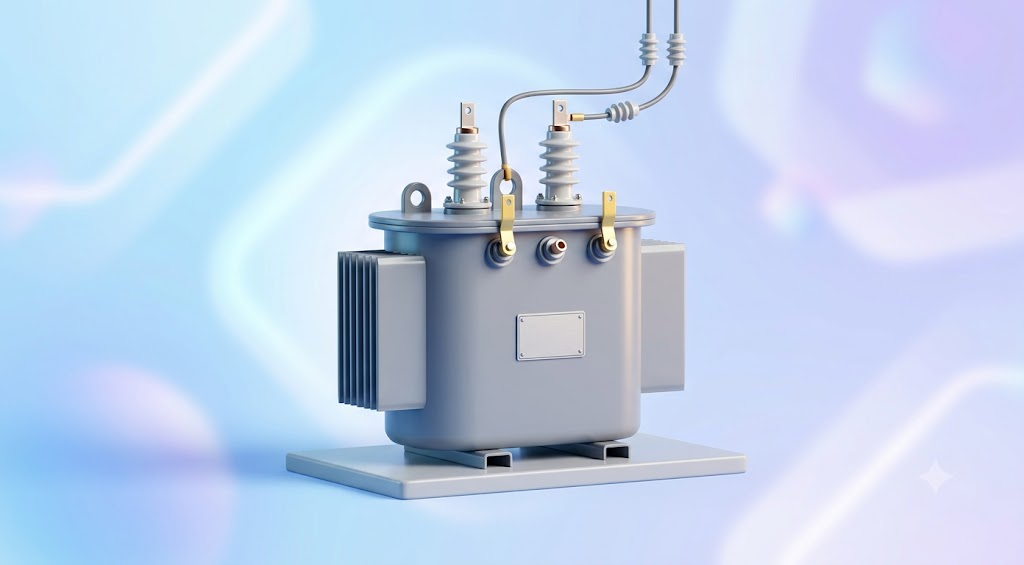

A 5kVA transformer is a step-up or step-down power transformer rated to handle 5,000 volt-amperes of apparent power, commonly used to convert voltage for small commercial equipment, home workshops, control panels, and light industrial loads. It’s available in single-phase and three-phase configurations, with 110V and 220/240V being the most common secondary voltages. Choosing the right unit depends on your load type, duty cycle, and whether you need continuous or intermittent operation. What Is a 5kVA Transformer, Exactly? A transformer’s kVA rating tells you how much apparent power it can safely deliver without overheating. For a 5kVA transformer, that means it can support roughly 5,000 watts of load at unity power factor, though real-world capacity is usually a bit lower once you factor in power factor and inrush current. I’ve specified 5kVA units for control panels, CNC auxiliary circuits, and site office power drops, and the rating always looks bigger on paper than it behaves in practice. A 5kVA transformer feeding a load with a 0.8 power factor is really only good for about 4,000 real watts continuously. That distinction trips up a lot of first-time buyers. Single-Phase vs. Three-Phase 5kVA Units A 5kVA single phase transformer is the standard choice for residential, small commercial, and control-circuit applications. It’s simpler to install, cheaper, and widely stocked. A 5kva transformer 3 phase unit is used where the load itself is three-phase — small motors, certain HVAC compressors, or balanced distribution panels. Three-phase units are physically larger for the same kVA rating because the core and windings are split across three legs, but they deliver smoother power with less ripple. If your load is a single motor or a lighting circuit, single-phase almost always makes more sense. If you’re feeding a three-phase machine downstream, don’t try to fake it with three single-phase units unless you fully understand phase balancing — it’s a common mistake that leads to nuisance tripping. 5kVA 110V Transformer: Common Use Cases A 5kva 110v transformer typically steps 220V or 240V mains down to 110V, which is the standard voltage for portable tools and equipment on many construction sites, especially in the UK and parts of Europe where 110V site power is a safety requirement. Typical applications include: Powering site transformers (yellow 110V equipment) on construction sites Running low-voltage lighting towers Supplying portable power tools in damp or high-risk environments Isolating equipment from mains for safety in wet locations On a renovation project I consulted on, the electrical contractor insisted on a center-tapped 110V transformer specifically so that if a fault occurred, the maximum shock potential to ground was capped at 55V. That’s the real safety logic behind 110V site transformers, and it’s worth understanding rather than just treating it as a code checkbox. 5kVA Continuous Transformer: What “Continuous” Really Means A 5kva continuous transformer is rated to deliver its full 5kVA output indefinitely without exceeding its thermal limits, as opposed to units rated for intermittent or short-term duty cycles. This distinction matters more than most buyers realize. Some budget transformers are rated 5kVA but only for 30 minutes out of every hour before they need to cool down. If you’re running continuous loads — like a server room, a workshop compressor, or 24/7 monitoring equipment — you need a transformer explicitly rated for continuous duty, not just a 5kVA nameplate number. How to check: Look for the duty cycle rating in the datasheet, usually expressed as a percentage (100% = continuous) or in minutes. If it’s not listed, ask the manufacturer directly before buying. 5kV Transformer vs. 5kVA Transformer: Don’t Confuse Them This is a mix-up I see constantly. A 5kv transformer refers to a transformer rated for 5 kilovolts (voltage), while a 5kVA transformer refers to power capacity (voltage × current). These are completely different specifications and serve different purposes — a 5kV transformer is typically used in medium-voltage distribution or specialized industrial applications, not general-purpose power conversion. If you’re shopping for a general power transformer for a workshop, office, or home application, you almost certainly want a 5kVA transformer, not a 5kV one. Always double-check the spec sheet before ordering, since a typo in a search query can lead you to the wrong product category entirely. How to Size and Select the Right 5kVA Transformer Follow these steps to avoid over- or under-sizing: List every load the transformer will feed, in watts. Convert to VA by dividing real watts by the expected power factor (commonly 0.8 for motors and mixed loads). Add 20–25% headroom for inrush current and future expansion. Check duty cycle needs — continuous vs. intermittent. Confirm voltage requirements on both primary and secondary sides. Choose single-phase or three-phase based on the load type. Example Calculation Suppose you have a workshop with: A 2,000W air compressor (0.75 power factor) 1,500W of lighting A 500W control panel Total VA needed: (2,000 ÷ 0.75) + 1,500 + 500 ≈ 4,666VA A standard 5kVA transformer gives you a small safety margin, but it’s tight. In this case, I’d recommend sizing up to 7.5kVA if the compressor cycles frequently, since motor inrush current spikes well above running current. Pros and Cons of 5kVA Transformers Pros: Compact and relatively affordable compared to larger industrial units Widely available in both single-phase and three-phase versions Sufficient for most small workshops, control systems, and site power needs Easy to install without specialized rigging equipment Cons: Limited headroom for motor-driven loads with high inrush current Not suitable for larger three-phase machinery or heavy industrial processes Continuous-duty models cost more than intermittent-duty equivalents Undersizing is a common and costly mistake Installation and Safety Tips Always mount transformers in a ventilated location — heat buildup shortens lifespan significantly. Use properly rated circuit protection on both primary and secondary sides. For 110V site transformers, confirm the center-tap grounding configuration meets local safety codes. Have a licensed electrician verify load calculations before final installation, especially for three-phase systems. Label the transformer clearly with input/output voltage and kVA rating for future maintenance. Frequently Asked Questions How many watts can a 5kVA transformer handle? At unity power factor, a 5kVA transformer handles about 5,000 watts. With a typical 0.8 power factor load, real usable output is closer to 4,000 watts. Can a 5kVA transformer run a 3-phase motor? Only if it’s a three-phase unit or if you’re using three properly configured single-phase transformers in a balanced bank. A single-phase 5kVA transformer cannot directly power a three-phase motor. What’s the difference between a 5kVA and a 5kV transformer? A 5kVA transformer is rated by power capacity; a 5kV transformer is rated by voltage. They’re not interchangeable terms, and confusing them can lead to buying the wrong equipment. Is a 5kVA transformer enough for a home workshop? For most home workshops with lighting, small power tools, and basic equipment, yes. If you’re running a welder, large compressor, or multiple motors simultaneously, you may need to size up. What does “continuous rating” mean on a 5kVA transformer? It means the transformer can deliver its full rated output indefinitely without overheating, as opposed to intermittent-duty units that need cooldown periods. Why do I need a 110V transformer on a construction site? 110V site transformers, especially center-tapped versions, reduce shock risk by capping the maximum voltage to ground at 55V, which is a safety standard on many job sites. How much does a 5kVA transformer typically cost? Prices vary by manufacturer, duty cycle rating, and phase configuration, but continuous-duty and three-phase units generally cost more than intermittent-duty single-phase models. Get quotes from at least two suppliers before committing. Can I replace a 5kVA transformer with a larger one without rewiring? Not always. Larger transformers may have different physical dimensions, terminal configurations, and current ratings that require updated wiring and circuit protection. Always consult an electrician before upsizing. Key Takeaways A 5kVA transformer is a versatile, mid-range power solution suited to workshops, control panels, and small commercial applications, but sizing it correctly requires more than glancing at the nameplate rating. Understand your load’s power factor, confirm whether you need continuous or intermittent duty, and choose single-phase or three-phase based on your actual equipment — not just habit. When in doubt, add headroom and consult a licensed electrician before finalizing your purchase. Getting these details right upfront saves money, prevents nuisance failures, and keeps your installation safe for years to come. Post navigation How Making Tax Digital Is Changing Tax Returns for Sole Traders
