5 Graco Sprayer Problems New Homeowners Hit in Year One — And the $30 Parts That Solve Each One

You bought a Graco airless sprayer. You watched a few YouTube videos, felt confident, set it up in the backyard — and then something went wrong. The machine won’t prime, or the fan looks terrible, or you painted for ten minutes and now the pressure has dropped. You’re standing there wondering if you broke a brand new sprayer.

You almost certainly didn’t. Almost every problem new Graco owners encounter in their first year has nothing to do with a broken machine. They’re fixable, they’re common, and the parts that fix them cost between $2 and $30. We see these exact five problems weekly as an authorized Graco dealer. Here is exactly what’s happening, why, and what to do about it.

The parts referenced in this guide are available as genuine OEM components through our Graco paint sprayer parts catalog, with same-day shipping from Houston, TX on qualifying orders before 1pm CST.

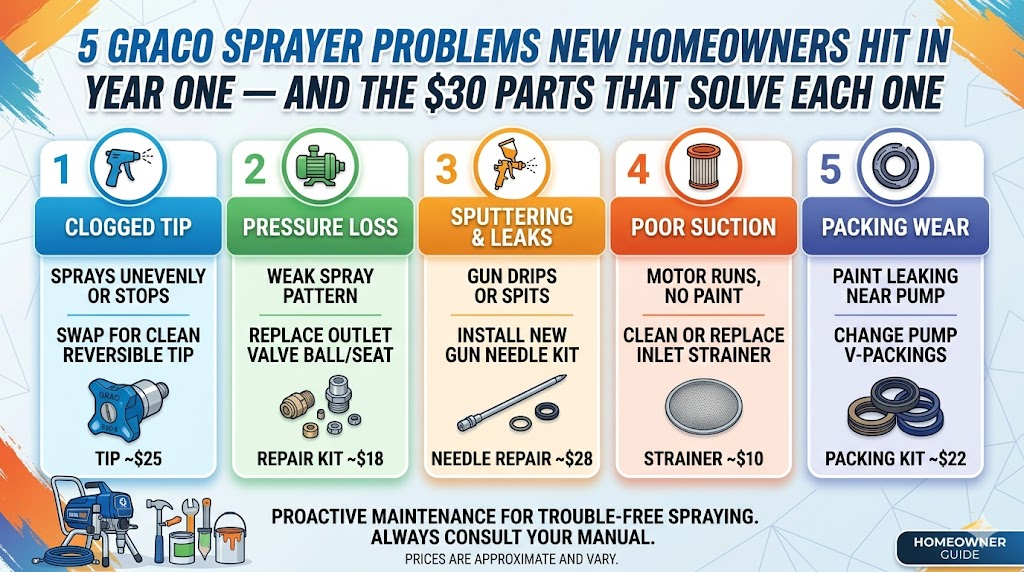

Quick Reference: All 5 Problems at a Glance

  PROBLEM 1    Machine Runs But No Paint Comes Up      Fix: ~$22 or free

“The motor sounds normal, everything seems fine, but no paint is drawing up from the bucket. I’ve been at it for 20 minutes and I’m ready to return the machine.” — New X5 owner, first job

This is the single most common call we get from new Graco owners. And almost every time, the machine is not broken. The inlet valve ball — a small stainless steel ball sitting on a carbide seat at the bottom of the pump — is stuck.

Here’s what happened: the machine was assembled and primed at the factory or store. During shipping and storage, the lubricant on the inlet ball dried slightly. When you first try to prime, the ball doesn’t move freely enough to let paint in. The motor runs, the piston strokes, but nothing enters the pump because the inlet can’t open.

This is not a defective machine. It’s a stuck ball. It takes under two minutes to fix.

The Pencil Trick — Try This First

1. Make sure the machine is OFF and unplugged. Relieve any pressure by pointing the gun into a bucket and pulling the trigger.
2. Remove the suction tube from the paint bucket.
3. Look into the suction port at the base of the pump — you’ll see the inlet housing. Insert the eraser end of a pencil (not the pointed end) and gently push the ball. It should move freely and spring back. If it’s stuck, push it several times to free it.
4. Reinstall the suction tube, prime the machine on LOW pressure, and try again. If it primes — you’re done.
5. If it primes but sticks again next session: the inlet valve seat is worn and the ball will keep bonding. Order the inlet kit below and replace both ball and seat together.

✅  The $22 Fix If the Pencil Trick Doesn’t Hold

A ball that keeps sticking has a worn seat underneath it — the seat is pitted from the ball impact and the ball keeps bonding to it. The fix is the 17J876 inlet housing kit ($22) for X5/X7 machines — includes a new housing, ball, and spring. 20-minute swap, no special tools. This is the most commonly ordered Graco homeowner part for a reason.

Part to order: 17J876 — Inlet Housing Kit (~$22) · Fits: Magnum X5 (all series), X7 (all series), LTS15, LTS17, Project Painter Plus

Also helpful: Graco Pump Armor (~$8) — run through the machine after this job and after every job going forward. Prevents the ball from bonding during storage. More on this in Problem 5.

  PROBLEM 2    Spray Tip Clogs Every Few Minutes      Fix: ~$2 per filter + $3 strainer

“I keep reversing the tip, blasting it out, and two minutes later it’s clogged again. This is absolutely maddening. What is wrong with this machine?” — New Magnum X5 owner, exterior fence project

Nothing is wrong with the machine. The paint is wrong — or rather, the paint hasn’t been strained.

Every can or bucket of paint contains debris you can’t see: microscopic dried paint flakes from around the can lid, particulates from the manufacturing process, and in older or mixed paint, chunks of dried material. Your Graco’s spray tip has a tiny precision orifice — a 515 tip has an opening of .015 inches across. Debris that you’d never notice in the paint flows straight into that orifice and blocks it.

The tip reversal (RAC X SwitchTip) blasts the debris out backward — but if you’re loading debris-filled paint into every bucket, the clogs keep coming back because there’s an endless supply of debris waiting to hit that orifice.

There’s also a second cause: the gun handle filter. Every Graco spray gun has a mesh filter inside the handle between the hose and the tip. When this filter gets coated with paint debris, it restricts flow enough that the tip gets the blame — but the real problem is upstream.

Two Fixes, In Order

6. Strain every bucket of paint before loading. Pour it through a mesh bucket strainer (cost: ~$3) before putting the suction tube in. This catches the debris before it reaches the tip. Painters who do this report dramatically fewer tip clogs — it’s the simplest prevention available.
7. Check and replace the gun handle filter. Unscrew the bottom of the spray gun handle (counter-clockwise, hand tight). The mesh filter slides out. If it’s coated in debris or paint residue, replace it with a fresh one. Cost: under $2. This should be done at the start of every new bucket of paint during a painting session.

✅  The 30-Second Filter Swap That Fixes ‘Constant Clogs’

If your tip keeps clogging after the reversal trick, pull the gun handle filter before you blame the tip. Nine times out of ten, the filter is loaded with the debris you thought was in the tip. A fresh filter restores full pressure and eliminates the clogs instantly. Keep 10 spare filters in your supply kit at all times.

Parts to order: Gun handle filters (pack of 10, ~$15) · Fits: SG2 spray gun included with X5, X7, LTS15, LTS17

Also buy: A 5-gallon mesh bucket strainer (~$3) — use one per bucket, every time.

⚠️  Never Use the Last Inch of a 5-Gallon Bucket

The bottom inch of any used 5-gallon paint bucket is where dried flakes and debris accumulate. Loading those last couple quarts straight into the sprayer without straining is the most common cause of ‘constant clogging’ complaints. Strain into a fresh bucket, or simply discard the last inch rather than fighting clogs for 20 minutes over $3 worth of paint.

  PROBLEM 3    Spray Pattern Looks Streaky, Uneven, or Has ‘Tails’      Fix: ~$0 to $15

“The spray fan has heavy lines at the top and bottom and a lighter section in the middle. It looks like a cat’s eyes, not a clean rectangle. Everything I spray looks terrible.” — First-time X5 user, interior bedroom

The ‘cat-eye’ or ‘tailing’ fan pattern — with heavy, saturated edges and a lighter center — is one of the most common finish problems new sprayer users encounter. The good news: in most cases it’s not a parts problem at all. It’s a pressure problem.

Here is the most important thing to understand about airless sprayer pressure settings: too low and the paint doesn’t atomise properly, producing tails. Too high and you get excessive overspray. The correct setting is ‘the lowest pressure that produces a complete, even fan with no tailing at the edges.’ Most new users start too low and leave the setting there.

Diagnose in 60 Seconds

8. Spray a test pattern on a piece of cardboard at 12 inches from the surface. Step back and look at the fan.
9. Clean rectangle with even coverage: Pressure is correct. Problem is technique — you’re moving too slowly or too close to the surface.
10. Heavy edges, light center (‘tails’): Pressure is too low. Increase the pressure dial one increment. Test again. Repeat until tails disappear.
11. Fan is narrower than expected (short, fat pattern): Tip is worn. Try a fresh tip — if the pattern improves, the old tip was the issue.
12. Heavy line on one side only: One half of the tip orifice is partially blocked. Reverse the tip and blast it out. If the problem persists, replace the tip.

The Correct Pressure Technique

Start with the pressure dial at its lowest setting. Spray a test pass and look at the fan. Increase the pressure by one small increment at a time until the tails disappear and the fan is clean and even. That is your correct setting for this paint. Write it down for next time. Different paints at different viscosities will need different settings.

✅  The $15 Fix When Pressure Changes Don’t Help

If you’ve increased pressure to maximum and the tailing persists, the spray tip is worn — its orifice has gone oval from use, which produces permanent tailing that no pressure adjustment fixes. Replace the tip with a fresh RAC X 515 SwitchTip (~$15). If the pattern immediately improves on the fresh tip, the old one was the problem.

Part to order: RAC X 515 SwitchTip (~$15) · Fits: All Magnum X5, X7, LTS15, LTS17 sprayers. Also available in 517 for exterior latex.

Technique tip: Hold the gun perpendicular to the surface, 10–12 inches away. Move at a steady arm speed — not too fast, not too slow. Overlap each pass by 50%. These technique habits fix more ‘bad pattern’ problems than any part replacement.

  PROBLEM 4    Motor Runs Constantly and Pressure Feels Weak      Fix: ~$2 to $18

“The motor never seems to stop running. The pressure feels lower than when I first started. I’m using the same settings that worked at the beginning of the day but now the spray is weaker.” — X5 owner, three hours into an exterior paint job

When the motor cycles constantly — running even with the trigger released, rather than starting only when you pull the trigger — it’s a sign the machine is working harder than it should to maintain pressure. There are three possible causes in order of how often they happen:

Cause A: Clogged Gun Filter (Most Common — Check This First)

A partially blocked gun filter restricts the amount of paint reaching the tip per pump stroke. The pump keeps running trying to build pressure against the restriction. The fix is a fresh gun filter — same process as Problem 2. If changing the gun filter restores normal cycling behaviour, that was the cause.

Cause B: Worn Spray Tip

A worn tip’s orifice goes from a precise .015” circle to an irregular, larger oval shape. More paint flows per stroke than intended, which means the pump is constantly trying to keep up with a flow rate higher than its rated output. The motor cycles constantly. Replace the tip and see if cycling returns to normal.

Cause C: Outlet Valve Starting to Fail

If a fresh gun filter and a new tip both fail to fix the constant cycling, the outlet valve — the upper check ball and seat inside the pump — is probably the cause. When this valve fails, pressure built by the pump bleeds back into the pump body instead of staying in the hose. The pump keeps trying to rebuild it. Symptom confirmation: the machine primes correctly, but when you hold the trigger open and then release it, the motor restarts very quickly (within 5–10 seconds rather than 15–20+).

✅  The Diagnosis Order

1. Change the gun filter first — takes 30 seconds, costs $2, fixes this 40% of the time. 2. Swap the spray tip — takes 10 seconds, costs $15, fixes this another 30% of the time. 3. If both fail: order the 17J880 outlet valve kit ($18) and replace the upper check valve. This fixes the remaining 30% of constant-cycling cases on homeowner machines.

Parts to order: 17J880 — Outlet Valve Kit (~$18) · Fits: Magnum X5 (Series B–E), X7 (Series B–D), LTS15, LTS17

Good news: The outlet valve on X5 and X7 machines is accessible via the easy-access door on the machine body — no pump removal required. With the right OEM kit, this is a 15-minute repair.

  PROBLEM 5    Machine Won’t Prime the Morning After First Use      Fix: ~$0 to $22

“Used the sprayer yesterday, cleaned it out, put it away. This morning it won’t prime at all. Motor runs fine but nothing comes up. The tip is clear. I have no idea what happened overnight.” — X7 owner, day two of a fence project

This is the most preventable problem on this list — and also the most upsetting for new owners because it happens immediately after what felt like a successful first session.

Here’s what happened: you flushed the machine but didn’t run Pump Armor or storage fluid through it before putting it away. Residual latex paint — even a thin film — dried on the inlet valve ball and its seat overnight. The ball is now bonded lightly to the seat. When you try to prime this morning, the ball doesn’t move freely enough to let paint in. The machine sounds normal because the motor and piston are fine. The inlet valve is the problem.

The Morning Fix — Try This Before Ordering Parts

13. Unplug the machine. Relieve any pressure. Remove the suction tube.
14. Insert the eraser end of a pencil into the suction port and gently push the inlet ball 4–6 times to free it.
15. Reconnect the suction tube. Set pressure to LOW. Turn ON. Try to prime.
16. If it primes: you’re back in business. Finish your job. That evening, run Pump Armor through the machine before storing. This will not happen again if you do this step.
17. If the pencil trick doesn’t free it: tap the bottom of the inlet housing firmly 3–4 times with the heel of your hand while the machine is running on PRIME. The vibration often breaks the bond. If the machine primes after this, order the inlet kit and replace the ball and seat before they bond again.

The Permanent Prevention: Pump Armor

Pump Armor is a storage and protection fluid designed specifically for Graco piston-pump machines. It leaves a protective film on the inlet ball, seat, and all pump internal surfaces that prevents latex paint from bonding during storage. It also provides freeze protection in cold weather.

The routine: after your final spray pass, place the suction tube in a small cup of Pump Armor. Turn the machine on PRIME. Let it draw the Pump Armor through the complete fluid path — through the pump, hose, and gun trigger. Run until Pump Armor exits the gun tip (about 20 seconds). Turn OFF. Done. This takes 30 seconds and costs approximately $1.50 per session from a $8 bottle.

⚠️  This Is Not Optional Maintenance

Graco’s official documentation for the X5 and X7 states explicitly that Pump Armor should be used between every use. Not at the end of the season. Between every use. The won’t-prime call is the most preventable service event we see — and 100% of the time, it could have been avoided with Pump Armor storage.

Parts to order: Pump Armor 17S980 (~$8) · Fits: Magnum X5, X7, LTS15, LTS17, and all Graco homeowner Magnum machines

If the ball won’t free with the pencil trick: 17J876 — Inlet Housing Kit (~$22) · Replace ball and seat together. A seat that has been repeatedly bonded develops pitting that causes recurring sticking regardless of Pump Armor.

The 5-Minute Setup Routine That Prevents All 5 Problems

Every problem in this guide is preventable. Here is the complete routine that eliminates them — it adds about 15 minutes total to your painting session:

Before You Start Spraying

• Strain your paint. Every bucket, every time. A $3 mesh strainer eliminates 80% of tip clog incidents.
• Check the gun filter. Pull it, hold it to the light, replace if you can’t see clearly through it. Takes 30 seconds.
• Set pressure correctly. Start low. Spray a test pass on cardboard. Increase slowly until you have a clean, even fan with no tailing at the edges.

During Your Spray Session

• Replace the gun filter at every new bucket. 30 seconds. Eliminates the mid-session pressure drop that gets blamed on the pump.
• Never load the last inch of a bucket. The debris at the bottom clogs tips. Strain it or discard it.
• Watch the fan pattern. If it starts tailing or narrowing mid-session, check the gun filter before anything else.

After You’re Done

• Flush completely until the water runs clear. Not ‘mostly clear’. Completely clear. Takes 3–5 minutes with the PowerFlush adapter.
• Run Pump Armor. Every time, before storing. 30 seconds. This is the single habit that prevents Problem 5 from ever happening.

Complete Parts Summary — Everything You’ll Need in Year One

All parts below are available as genuine Graco OEM components through SprayersAndParts.com, with same-day shipping on qualifying orders before 1pm CST from Houston, TX. As an authorized Graco dealer, every part we ship comes factory-sealed from Graco’s official distribution chain.

One More Thing — When to Actually Worry

All five problems in this guide are fixable by a homeowner with no special tools. But there is a scenario that warrants more attention: if your machine has been used for 75+ gallons and the motor cycling interval (seconds between motor restarts after trigger release) has dropped to under 10 seconds — the pump packings are wearing and the machine needs a pump service.

The pump repair kit for X5 and X7 machines is the 17V781 Magnum Pump Repair Kit (~$65). It includes everything needed for a complete pump rebuild. If you’re in year one of X5 or X7 ownership and under 75 gallons of use — you almost certainly don’t need this yet. The five problems in this guide cover the vast majority of what goes wrong before that service interval.

The bottom line: your Graco sprayer is not fragile. The problems that frustrate new owners in year one are almost universally about technique, maintenance habits, and a handful of inexpensive consumable parts — not broken machines. Follow the before/during/after routine above, stock a few filters and a bottle of Pump Armor, and your machine will work reliably for years.
